What are air source heat pumps?
Last updated 12/3/2019
Air source heat pumps are an efficient electric heating and cooling option for your home or business.
Most heating technologies, such as a natural gas furnace or electric baseboard heating, work in the same basic way: they modify the temperature of a building by generating hot air that is circulated throughout the home. An air source heat pump works differently. Instead of generating heat, it simply transfers heat from one place to another. As a result, air source heat pumps use energy much more efficiently than other technologies. In many cases, they’re a smart home energy system upgrade.
- Air source heat pumps can be used to both heat and cool your home, depending on the season and temperature
- Air source heat pumps work even in cold climates
- Air source heat pumps can either be ducted or ductless, depending on your building, its needs and your preferences.
How does an air source heat pump work?

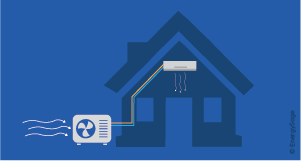

At its simplest, an air source heat pump heats your home or business by transferring heat from the outside air inside. This happens through a four-step process:
1. Outside air is drawn into the unit
This step begins at the outdoor unit of the heat pump. Outside air is drawn in with the use of a fan.
2. Heat from the outside air transfers into the system.
The air flows over a tube with refrigerant fluid being pumped through it (known as a heat exchanger). The refrigerant is colder than the outside air, and as the air flows over it, heat is transferred to it, which warms the liquid.
3. The heat is concentrated in the system’s heat exchanger.
As the liquid refrigerant is warmed through the heat exchanger, it turns to vapor in the same way that boiling water turns to steam. The vapor is then compressed to concentrate the absorbed heat.
4. The heat is moved into your home.
The concentrated hot vapor passes through a second heat exchanger, which supplies the heat energy to your house.
As your home warms up, the vapor cools and is pumped back through the first heat exchanger to collect more heat energy from the outside air. This happens continually to maintain your air temperature.
In warmer months, this process simply runs in the opposite direction to cool your home. Instead of transferring the heat from outside air to inside, the refrigerant is pumped through a heat exchanger inside your home first, where it absorbs heat energy and moves it outside.
Ductless vs. ducted air source heat pump systems
Once your outdoor unit captures heat, it must be distributed throughout your home. Homeowners have two options when it comes to distributing the warm or cold air from an air source heat pump: ducted and ductless systems.
Ducted heating and cooling
Buildings with a ducted heating and cooling system distribute air through a single central path, usually tubes in the walls made from sheet metal.
If your building already has ducts installed, most experts will tell you to take advantage of the existing infrastructure and install a ducted system. A major benefit of ducted heating and cooling setups is that they are installed behind walls and in crawl spaces. As a result, you don’t need to worry about the indoor units that need to be installed with a ductless system.
However, ducts can be expensive and complicated to install. Ducted systems are best for new construction or properties that already have ductwork.
Ductless heating and cooling
In a ductless heating and cooling system, warm or cold air is pumped directly to several individual indoor units, which can each be controlled separately. There is no central indoor unit in a ductless system, making it easy to heat and cool different parts or rooms of a building to your preference. Ductless systems often referred to as “mini-splits.”
Ductless systems have many advantages. They are much simpler to install, more efficient than ducted systems, and allow for fine control of the temperature of individual rooms in any building. If you are building a new property or an addition, or are retrofitting a home without a ducted system, a ductless air source heat pump system is a simple and efficient option (as long as you don’t mind the look of units installed on the walls.)
Air source heat pumps are commonly used to regulate the air temperature of a building, which is known as an “air to air” systems. However, you can also use an air source heat pump as part of an “air to water” system, in which heat generated from the outside air can be sent to radiators, underfloor heating, and hot water systems.
FAQ: Is buying air source heat pumps worth the upfront investment?
Air source heat pumps typically cost more than traditional heating and cooling systems; however, a well-installed air source heat pump system is capable of providing 1.5 to 3 times the amount of electrical energy it consumes in the form of heat energy for your home. Lower electricity requirements mean lower energy bills over time.
