If you are trying to decide if solar hot water is right for you, understanding the installation requirements and process can be helpful to better grasp the scope of a solar hot water project for your home. Like any complex mechanical device, it is important to work with a reputable professional installation company to make sure your solar hot water is correctly set up.

Upgrade your heating & cooling with a heat pump
Please enter a five-digit zip code.
Your information is safe with us. Privacy Policy
  • 100% free to use, 100% online
  • Access the lowest prices from installers near you
  • Unbiased Energy Advisors ready to help
  1. Mount solar collectors on your roof

  2. Install storage tanks & heat exchanger

  3. Install piping systems for transfer fluid

  4. Install water transport pipes

  5. Install control systems

  6. Insulate the system

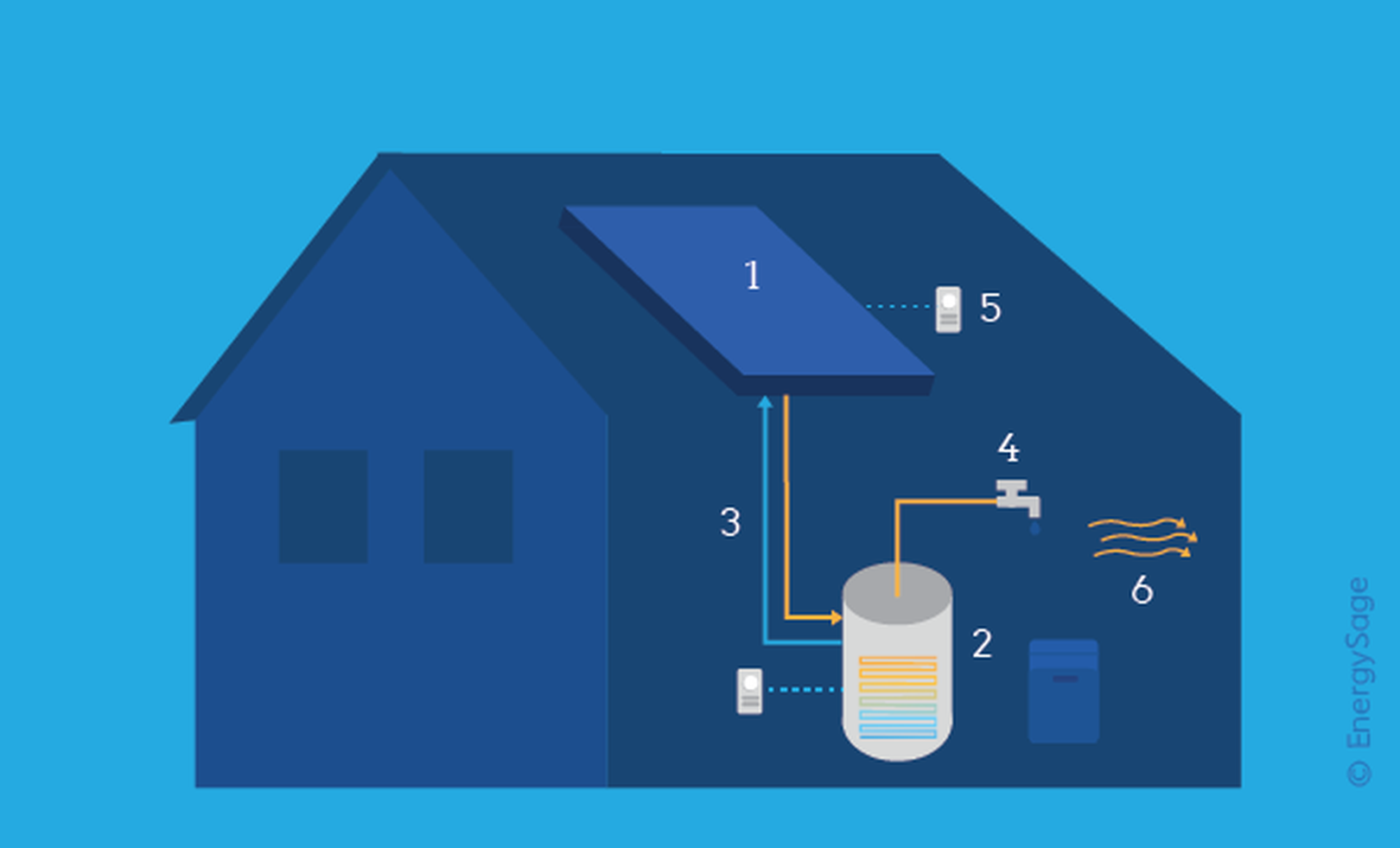

While no two installations are exactly the same, these are the general steps that any contractor installing a solar hot water system will likely follow. The six steps detailed below are meant to be an overview of the solar hot water installation process and don't reflect the exact course of action every installer might take.

Importantly, these steps are meant to explain the typical installation process for an active and indirect solar hot water setup. Most, but not all, systems installed in the U.S. are active indirect systems. (Learn more about the types of systems available here.)

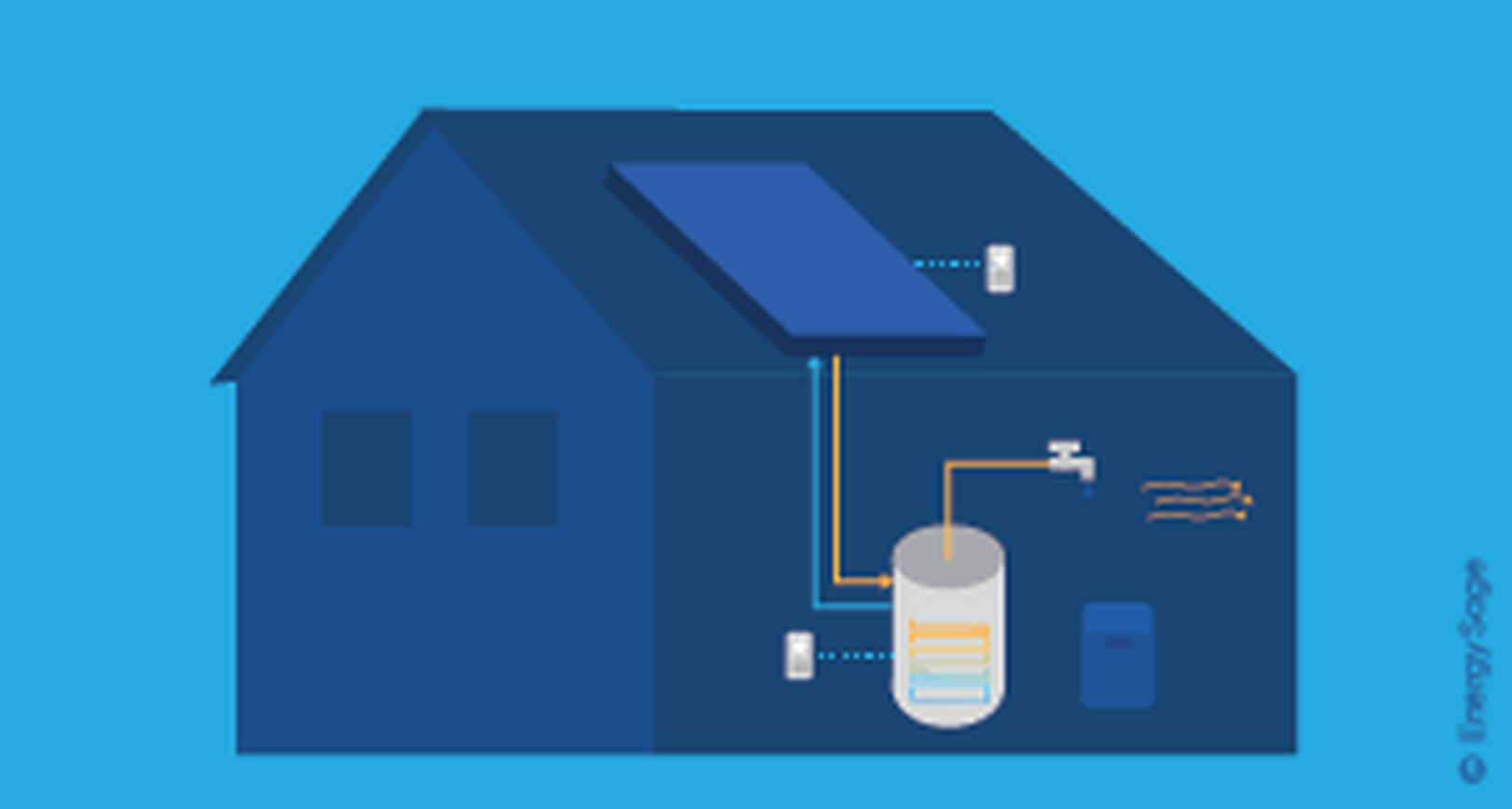

solar-hot-water-installation-system

Step 1: Mount the solar collectors

In most solar hot water installations, the first step is to put the solar collectors in place on your roof. Most solar hot water collectors are similar in shape to photovoltaic solar panels and will lie flat on your roof.

In order to properly mount the collectors, your installer may need to remove portions of your roof shingling and expose the flat tar paper that acts as protection between your shingles and roof deck. Once a suitable surface has been found or created, the collectors are maneuvered into place and screwed directly into the roof deck and underlying rafters.

Step 2: Install the storage tanks and heat exchanger

Next, your collectors need a storage tank where they can send their heated antifreeze transfer fluid. The storage tank, and the heat exchanger contained within it, are the largest part of a solar hot water system and are usually located in a basement or utility closet, where they are accessible by water lines and antifreeze tubing.

If you are replacing a gas-powered water tank, this step is essentially a replacement project. You can choose to install any number of storage tanks depending on your home's size and water usage. Additionally, this is when you will want to make room for and install a backup tank to be powered by electricity or gas for the times when you run out of solar hot water.

Step 3: Install piping systems for the antifreeze fluid

In order to connect your collectors to the heat exchanger and storage tanks, your installer will run flexible piping from your roof to your new storage tank or tanks. Antifreeze fluid leaves from one pipe on the side of your collectors and runs down to the heat exchanger. An additional line will be installed to connect the end of the heat exchanger back up to your rooftop so fluid can be cycled. If you have multiple collectors, additional pipes will be installed to connect them.

Installing these antifreeze piping paths requires access to your roof, which will almost always mean cutting a couple of holes in the roof deck – one for the piping that brings antifreeze down and one for the piping that sends it back to the collectors. These holes don't need to be larger than the pipe diameter and can easily be covered with insulating material and replacement shingles as the installation is being finalized.

Step 4: Install water transport pipes

As with antifreeze fluid, water needs to be cycled through your new solar hot water setup. Water transport lines, usually in the form of copper piping, need to be run from your storage tank to the rest of your home.

Your home likely already has the appropriate water distribution lines set up. The only work that your installer will do is to remove your water connection from your old hot water setup and connect it to your new storage tank and backup system.

As an important side note, you must also account for the backup hot water infrastructure. If your backup is an electric water heater, proper wiring must be installed. If you plan to use gas to back up your solar hot water, a gas line must be run to the backup storage tank.

Step 5: Install control systems

Two temperature sensors have to be connected with wiring and installed along your hot water system. One sensor should be connected to your collectors and one to your storage tank's base. This device will connect to the central control system and provide guidance on when to circulate antifreeze fluid. For example, if the temperature at the collectors is lower than the temperature in the tank, there's no reason to circulate fluid – in fact, doing so will cool your water.

A central control system also needs to be installed and connected to your home electricity supply. This device will act as the "brains" of your new solar hot water installation, facilitating the pumping of antifreeze based on the data it receives from the temperature sensors.

Step 6: Insulate the system

Once all the pieces are in place, the last step in any solar hot water job is insulating each part. Your installer will plug holes in your roof, insulate piping, and double-check that connections between components are sealed. Any energy lost along the piping systems or within the storage tank itself is lost savings, so it is vital to insulate your system properly.
