Tesla Universal Wall Connector review: Fast and flexible EV charging

Tesla helped define modern electric vehicle (EV) charging. But when it comes to your own garage, does the Tesla Universal Wall Connector actually outperform the competition—or is it just coasting on the brand name?

In all honesty, the industry vet has two solid options: The tried-and-true Gen 3 Wall Connector for NACS vehicles, and the Universal Wall Connector, which works, well, universally—its 2-in-1 connector is compatible with both NACS and J1772 ports.

EV charging expert and EnergySage partner Tom Moloughney tested the $600, hardwire-only Universal Wall Connector ($600) using his comprehensive ChargerRater evaluation system and rated it 4.45/5 stars. Let’s dive into the stats behind that rating.

Tesla’s Universal Wall Connector delivers the same charging performance as the Gen 3, but its integrated Magic Dock system lets you easily charge either a NACS-equipped vehicle—like a Tesla—or a J1772-equipped EV from another brand. Just remove the J1772 adapter when charging a Tesla or another NACS car, or leave it in place for J1772 vehicles.

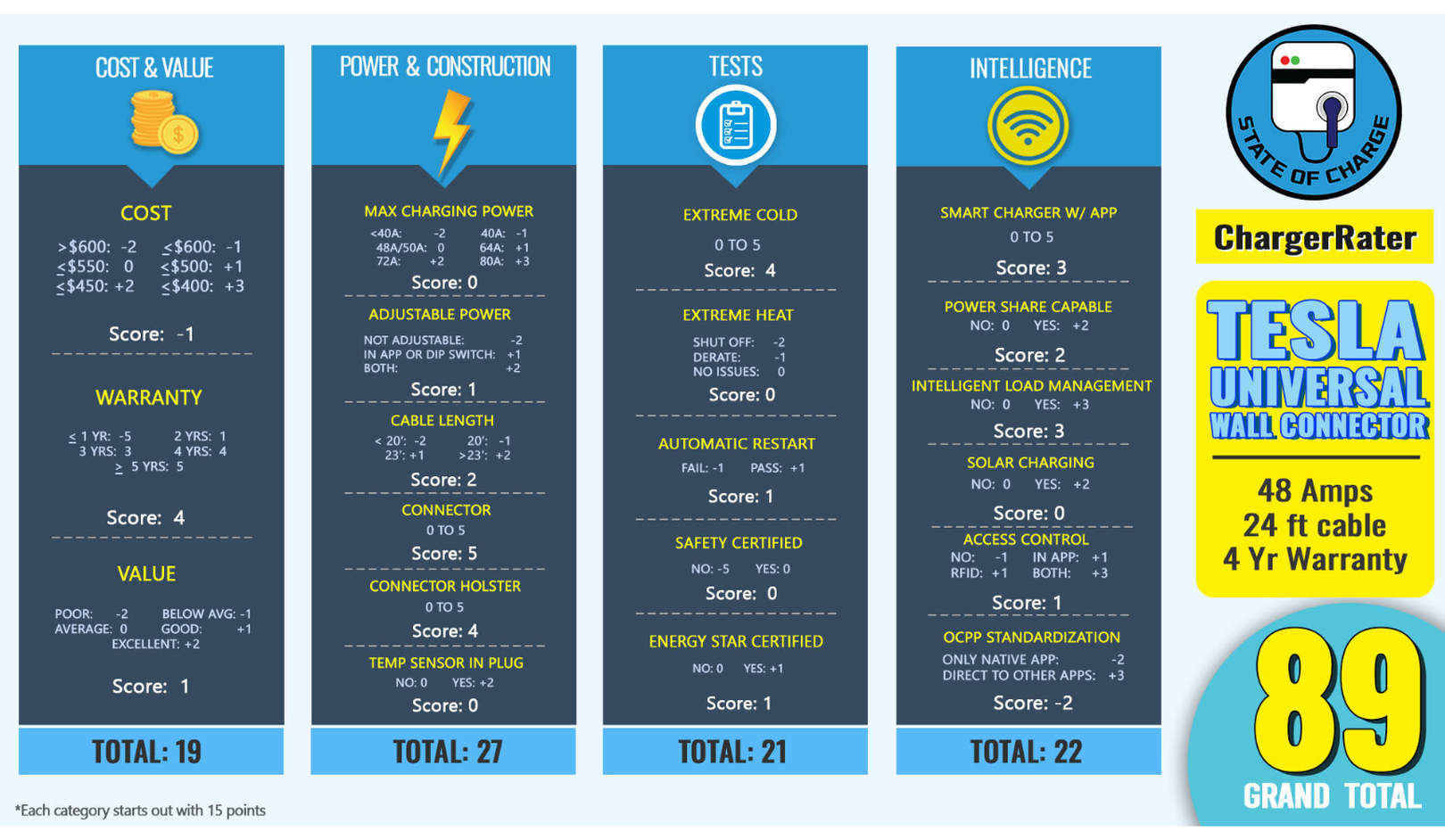

We teamed up with Tom Moloughney to use his ChargerRater evaluation system, which scored the Universal Wall Connector 89 out of 100 points, earning 4.45/5 stars. It maxed out in the power and construction category and earned strong marks across most other criteria.

Tesla Universal Wall Connector vs. other popular brands

While the Tesla Universal Wall Connector offers unique features, it's worth comparing it to other top-rated home chargers to see how it stacks up. Here's how it compares to other chargers that scored highly in Tom’s testing:

You own multiple EVs or plan to switch brands

The Universal Wall Connector is a smart pick if you have a Tesla and a non-Tesla EV in your household, or if you plan to add a second vehicle from another manufacturer. Its integrated Magic Dock means you won’t need to juggle separate adapters every time you switch which car you’re charging.

With major automakers moving to Tesla’s NACS standard, this charger is ready for whatever EV you drive next. No extra adapters or full station replacements required when you switch brands.

You want fast, reliable charging

Both Tesla Wall Connector models get the basics right. Being hardwired, they can charge at up to 48 amps, adding roughly 44 miles of range per hour for most EVs. Most owners can fully charge overnight, even after long daily drives.

You're already invested in the Tesla ecosystem

If you have a Tesla solar panel system, adding a Wall Connector creates tighter coordination between your car, panels, and battery.

You can set the Wall Connector to “Charge on Solar” mode, which charges the car battery with solar power instead of pulling from the grid. That means more of the electricity your system generates goes directly into your vehicle, reducing reliance on utility power.

Tesla products are designed to work together. The Wall Connector can integrate with a Tesla Powerwall so your home energy system can automatically decide when to power your home, store energy, or charge your vehicle. Instead of managing separate platforms, you can monitor and control everything from a single app, making the entire setup more streamlined and automated.

You're a renter or plan to move soon

The Universal Wall Connector only comes as a hardwired unit. If you rent your home, move frequently, or want the flexibility to take your charger with you, this could be a dealbreaker. Hardwired installation also typically costs more upfront due to the required electrical work, though this can vary.

Many other popular Level 2 chargers come in both plug-in and hardwired versions, giving you more flexibility. If you want to stay within the Tesla universe and need a plug-in option, Tesla sells the Mobile Connector, though it charges more slowly than the Wall Connector.

Long-term durability is a priority

Testing revealed concerns about the durability of the locking tab on the J1772 adapter portion of the Magic Dock. While it functions properly now, the mechanism doesn't feel as robust as the rest of the unit. This could potentially become a weak point with frequent use over time.

Additionally, the Universal Wall Connector features a tempered glass faceplate that, while sleek and attractive, may be more prone to breaking than the plastic faceplates used on most other chargers. If you're installing the charger in a high-traffic area, like a busy garage, or have concerns about accidental impacts, this could be a consideration.

Tesla’s Universal Wall Connector is solid, reliable, and fast, and it plays nicely with the Tesla ecosystem. Plus, the four-year warranty is longer than most competitors.

The downsides are mostly practical: It’s hardwired only, and the J1772 adapter lock could wear over time. If you care more about plug-and-play flexibility or need something that handles extreme cold better, exploring other brands may be worthwhile.

As always, the easiest way to figure out what charger and installation make sense for your home is to get professional quotes—licensed electricians or certified installers will give you the real picture without the guesswork.
