Understanding the electrical grid

Last updated 3/17/2020

When you flip a light switch, a light turns on. When you plug your phone into an outlet, it charges. But electricity isn’t always, universally available. In order for your lights to turn on and your phone to charge, electricity needs to be generated and transmitted to your home or business. That process takes place on the electrical grid, the web of interconnected transmission and distribution lines that connect supply to demand, bring electrical generation to where you are using it.

electrical grid and buildings

electricity and solar panels

How does the electrical grid work?

The electrical grid is, truly, a marvel of modern engineering. While the function it provides–creating and moving electricity to where it’s needed–may sound simple, the grid itself is anything but.

The electrical grid is a complex network of electrical generators (i.e., power plants) and transmission and distribution lines that dynamically responds to shifts in electrical supply and demand to make sure electricity is always supplied reliably.

how the electrical grid works

To keep the grid functioning requires a delicate balance between supply and demand, as well as a highly integrated series of components throughout the country. Grid operators, such as the California Independent System Operator (CAISO) and the Pennsylvania-Jersey-Maryland Regional Transmission Operator (PJM RTO), maintain this balance through a mix of market awareness and insights plus forecasts of weather, demand, and supply, with a goal of providing low-cost and reliable electricity service.

Interestingly, in the US, the grid is split into three sections in the contiguous states: the Eastern Interconnect, the Western Interconnect and the Electric Reliability Council of Texas (ERCOT). In fact, the Eastern and Western Interconnects even extend into neighboring countries. As a result, if you live in Boston, where EnergySage is located, you are electrically connected to people as far away as Florida. In fact, transmission line or generator outages in one part of an interconnect can cause cascading blackouts to occur hundreds or thousands of miles away, as occurred during the 2003 Northeast blackout

Electrical generation: conventional and renewable sources

Prior to the advent of renewable energy resources, the primary type of electrical production was creating steam to spin a turbine, which in turn created electricity. This is how conventional power plants operate. For instance, coal-fired power plants burn coal to produce steam to spin a turbine, natural gas-fired power plants burn natural gas, and nuclear power plants use the heat generated by a nuclear reaction.

In fact, many of the original renewable resources functioned the same way: by finding ways to spin a turbine to generate electricity. Wind energy uses the power of the wind to spin a turbine, geothermal power uses the heat of the earth to create steam to spin a turbine, and hydropower harnesses flowing water to spin a turbine.

Solar energy functions differently, by collecting sunlight and converting that energy into electrical energy on the face of solar panels. In each instance, the output is the same: either alternating current (AC) or direct current (DC) electricity that can be used in homes and businesses.

renewable energy sources

The primary difference between conventional resources and renewable resources is how and when they produce electricity. In the case of conventional resources, these power plants are turned on when needed due to demand for electricity on the system. On the other hand, renewable resources produce electricity when the energy is available, such as when the sun is shining or the wind is blowing, which is why solar and wind are often referred to as variable resources. Increasingly, the production from these resources can be stored to be used at a later time using energy storage (battery) technologies, matching production from renewables to demand on the electrical grid.

electricity and solar panels

How is electricity transmitted?

Unless you have solar panels on your property, the electricity that you are using at your home or business comes from power plants located far from your home. The transmission and distribution system connects these power plants to the areas where electricity is ultimately used.

The transmission system consists of much more than just poles and wires. The system relies upon a web of step-up and step-down transformers, substations, breakers and switches. Each of these components play an important role in maintaining the reliable operation of the grid.

Our interstate highway system is a convenient metaphor for the electricity transmission and distribution system, especially given the two often run in parallel. In this context, the poles and wires you see above you are like the interwoven roads that connect you from your house to a different city.

For instance, if you’re planning on driving on the highway, you need to quickly reach a much faster speed than you would drive at through your own neighborhood; similarly, when electrons are produced by a power plant, they need to be “stepped-up” to the voltage of the long-distance transmission lines they are joining (i.e., highways).

As you drive through a region, you may move from a large, six-lane highway to a smaller, four-lane highway; along the same lines, electricity may move from one major transmission line to another, regional transmission line at a substation.

And, finally, when you near your destination on a highway, you use the off-ramp to slow back down again to the speed of the streets in the new neighborhood; electrons do the exact same thing at “step-down” transformers at substations on the distribution network.

Types of power lines

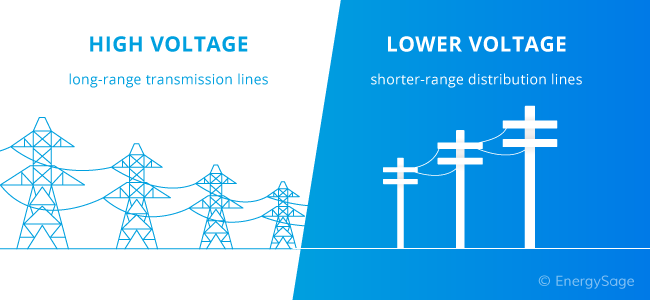

There are two primary types of power lines: high voltage, long-range transmission lines, and lower voltage, shorter-range distribution lines. The high voltage transmission lines are the type you see suspended high above highways in wide clear-cuts of land. The lower voltage distribution lines are the type you see if you look up while walking through your neighborhood. Though the two types of lines do effectively the same thing, moving electrons from their source (a power generator) to an end-user (you), there’s an important reason for the distinction between the two types of power lines.

types of power lines

During the process of transmitting electricity across the country, some of the original electricity produced is lost. The further you transport the electricity, the greater the losses. However, transmission engineers have found that higher voltage lines lose less electricity per mile traveled. As a result, in situations where electricity needs to be moved across vast distances, higher voltage lines are the best solution.

However, the voltage levels of these high-powered, long-range power lines are much higher than appliances in homes and businesses can handle. Before electricity reaches your home or even your neighborhood, it must be “stepped-down” to a lower voltage by a device called a transformer, so called because it "transforms" electricity from one voltage to another.
